Codes. Truck won’t move

[CBR consulting]

With the new multi meter. Right at solenoid A I read 5.5ohms.

At terminal 22/23 I read 5.6 ohms

At terminal l /m. I read 5.5 - 5.6



[denata]

To measure the current you need to move the red probe to contact “A”. Mode switch to position "A".



[denata]

With the new multi meter. Right at solenoid A I read 5.5ohms.

At terminal 22/23 I read 5.6 ohms

At terminal l /m. I read 5.5 - 5.6

And you still have error P0748?



[CBR consulting]

And you still have error P0748?

Yes

Not able to clear code

Pans off the truck so don’t want to turn ignition on unless I can just have the key in on position to hook scanner up

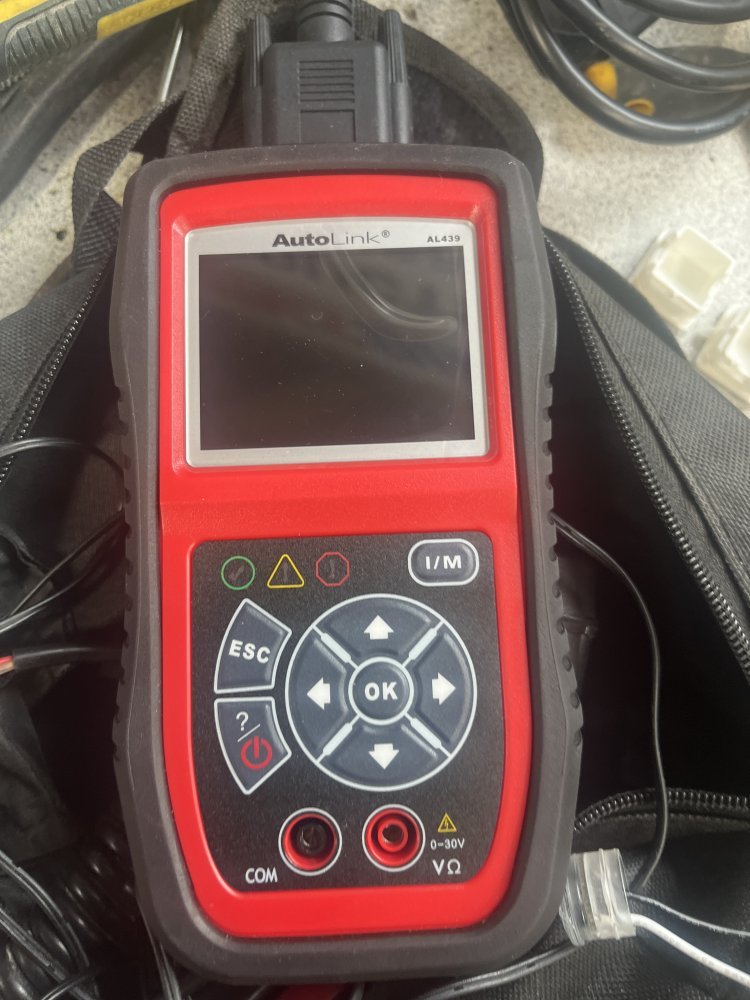

This is the scanner I have



[denata]

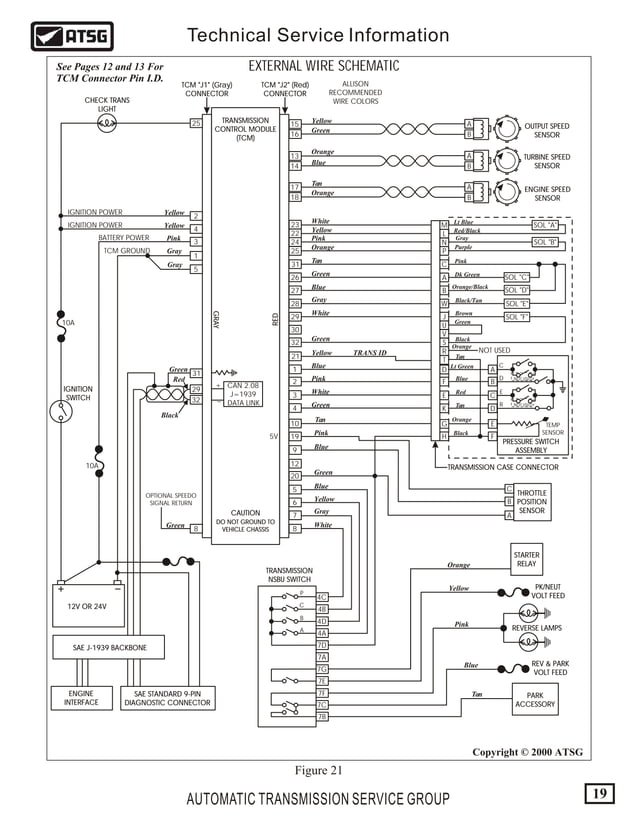

Is there voltage on these contacts?



[CBR consulting]

Is there voltage on these contacts?

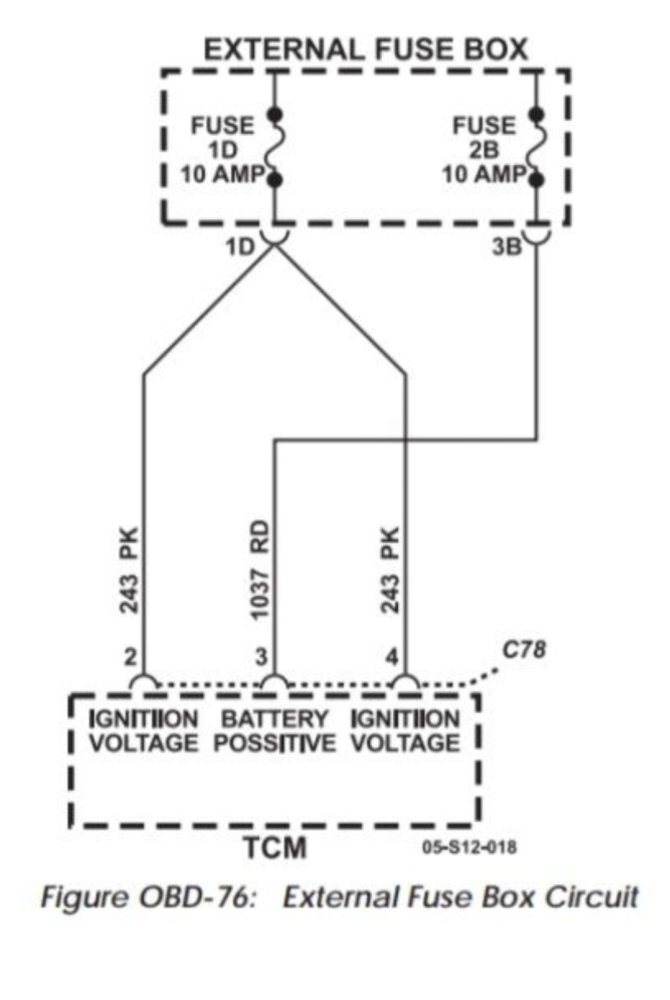

View attachment 83972

Ignition Off

Grey connector.
Pin 2. 12.50 volts
Pin 3. Zero
Pin 4. Zero


Ignition On

Pin 2. 12.26 Volts
Pin 3 12.20 volts
Pin 4. 12.20 volts



[denata]

Strange, it should always be on pin 3. not 2



[denata]

Is there voltage on the other connector pins 22, 24, 32?



[CBR consulting]

Strange, it should always be on pin 3. not 2

Just checked again to make sure had a typo

Grey connector. With ignition off

Pin 2 and 4 zero


Pin 3 12.50 Volts



[CBR consulting]

Is there voltage on the other connector pins 22, 24, 32?

Red connector ?



[denata]

yes on Red. And check pins 1 and 5 on the gray connector.



[CBR consulting]

yes on Red. And check pins 1 and 5 on the gray connector.

Red connector.


No volts on 22.24.32. with ignition off and on


Grey connector
No Volts with ignition off

0.09 volts with ignition on. Pin 1,5



[denata]

You need to disassemble the TCM and take a photo of the board on both sides.



[CBR consulting]

Red connector.


No volts on 22.24.32. with ignition off and on


Grey connector
No Volts with ignition off

0.09 volts with ignition on. Pin 1,5

This was with both red and grey plugs disconnected



[denata]

Connect the connectors and measure again



[CBR consulting]

Connect the connectors and measure again

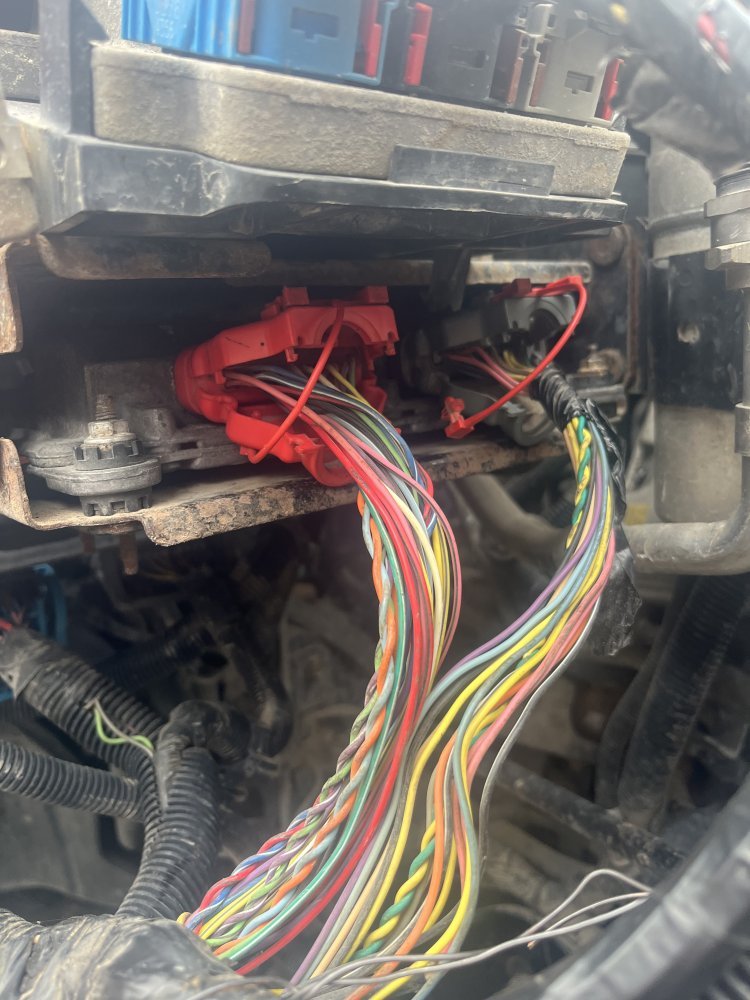

What’s the best way to prob them then ?



[denata]

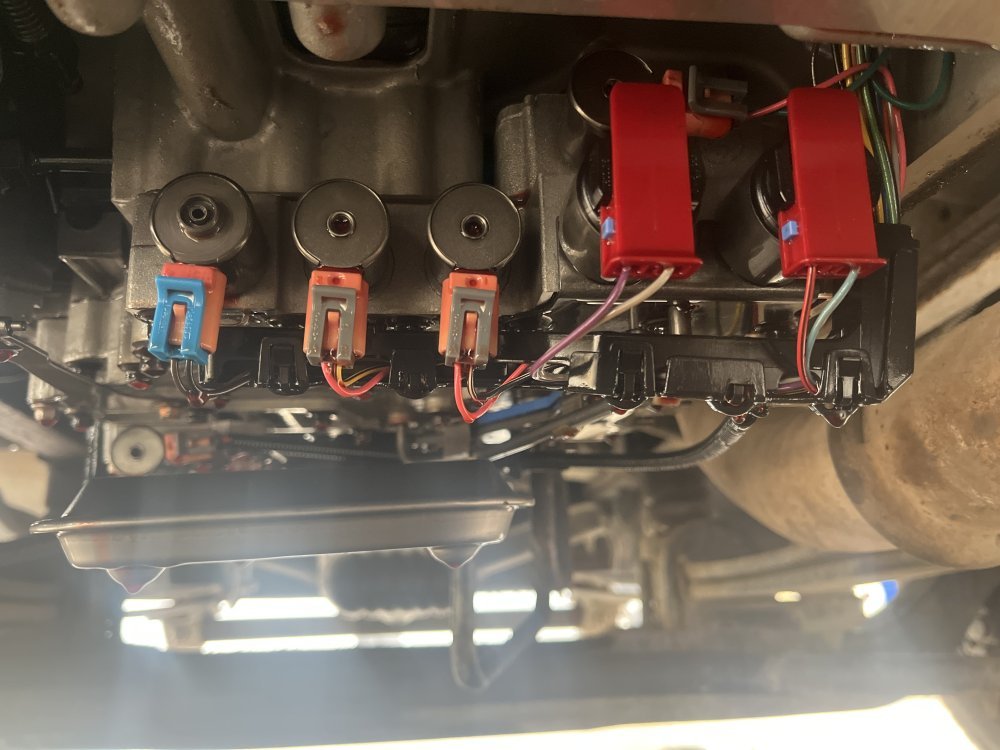

Do you have the pan removed? you can measure directly on the solenoids.



[denata]

You can take a long needle from the syringe to get to the desired contact on the TCM



[CBR consulting]

Yes I still have the pan removed

Do you want the connector unplugged at the solenoid and then check voltage with ignition on ?



[CBR consulting]

Ignition On

At the pan


Red/ black wire. - 4.74volts
Light blue. —- 0.86 volts



Purple. - 4.22 volts
Grey. 4.22 volts
