My Water to Air intercooler install

Husker6.5 said:
Looking great so far, Nate! Now, put some 1/4" expanded steel mesh behind it to protect from flying pebbles, paint it all black, and you're ready to rock and roll (no pun intended!)!
Click to expand...
Thanks Husker! Yeah, as much as I want to leave it open because it looks BA seeing the fins all exposed like that, I fear that's just an accident waiting to happen. I'll be finding some kind of mesh or screen to put on it that will look good and protect the heat exchanger too.

n8in8or said:
Thanks Husker! Yeah, as much as I want to leave it open because it looks BA seeing the fins all exposed like that, I fear that's just an accident waiting to happen. I'll be finding some kind of mesh or screen to put on it that will look good and protect the heat exchanger too.
Click to expand...
n8in8or said:
Yeah, it could technically work, it's what Husker said....it's all about BTU dissipation. I looked up the heat exchanger I'm running and it doesn't have a BTU/Hour rating, just a horsepower rating. This one is rated at 1200 horsepower. I chose it because it was so oversized, I figured it would help to oversize it since it was in an inefficient mounting location. Too bad I don't have an IAT gauge hooked up, because it would have been really interesting to see if it made a difference to my IATs.
Click to expand...
1 HP equals 2,544.43 BTU/hr, so that radiator can dissipate 3,053,316 BTU every hour!

Of course they rate it 1200 HP, but at what CFM of airflow and at what ambient temperature and what temperature of the fluid passing through the radiator? Then there is the factor of how efficiently the heated air from the turbo gives up its heat to the fluid running through that exchanger, too.

n8in8or said:
Ok the grill insert is done - well, except I'll probably take it to work and weld the connections a little bit more with a TIG welder to get them fully welded and keep the weld small. It fits pretty nice.

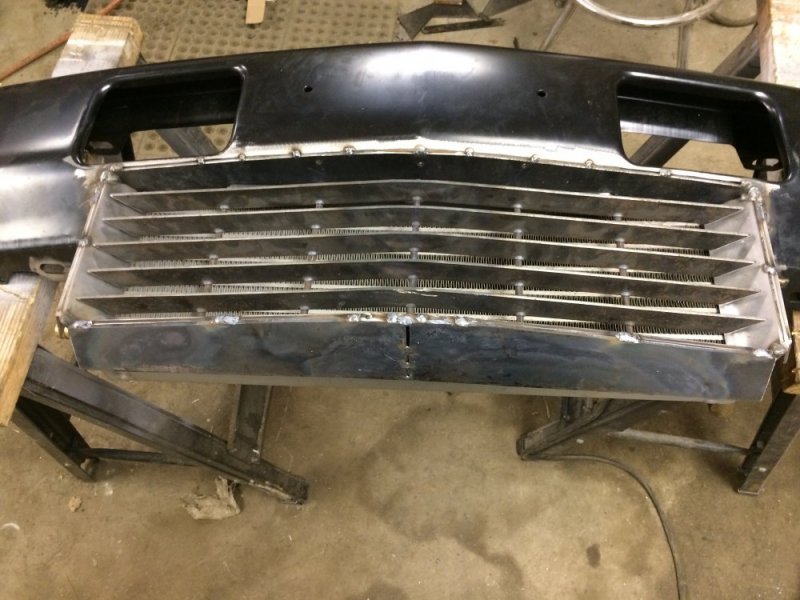

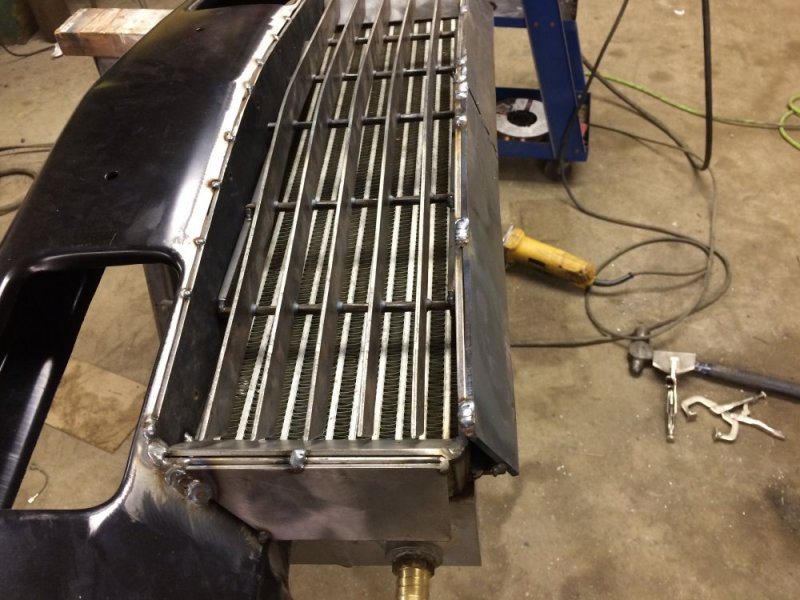

Next I'll be adding the trim around the bottom of the "mouth".View attachment 49436View attachment 49437View attachment 49438View attachment 49439View attachment 49440View attachment 49441
Click to expand...

That's beginning to look like it would make one heck of a road kill vacuum / squirrel sucker!! All kidding aside, it's looking good.

SlowBoat said:
Anxiously awaiting a pic of that bumper mounted beneath the grille and front end!
Click to expand...
I won't be able to work on it again until Monday. I want to mount it up before I finish weld it so maybe later this week it will be mounted for a test fit.

New from Ronco, the Squirrel-O-Matic! Make tasty and nutritious ground squirrel sliders in just minutes on your way to work! No need to pack a lunch when you can effortlessly make squirrel sliders on your morning drive to work, fresh and ready when you pull into the parking lot! But wait! Act now and we'll send you a second Squirrel-O-Matic absolutely free, just pay the additional shipping and handling and as a bonus gift for ordering in the next ten minutes, we'll include the cookbook, 101 Easy Tasty Roadkill Recipes AND a second bonus gift of the handy dandy Squirrel Grille Scraper so you can easily remove every tender squirrel morsel from the Squirrel-O-Matic!

Act now, this offer ends in ten minutes and supplies ARE limited!

Husker6.5 said:
New from Ronco, the Squirrel-O-Matic! Make tasty and nutritious ground squirrel sliders in just minutes on your way to work! No need to pack a lunch when you can effortlessly make squirrel sliders on your morning drive to work, fresh and ready when you pull into the parking lot! But wait! Act now and we'll send you a second Squirrel-O-Matic absolutely free, just pay the additional shipping and handling and as a bonus gift for ordering in the next ten minutes, we'll include the cookbook, 101 Easy Tasty Roadkill Recipes AND a second bonus gift of the handy dandy Squirrel Grille Scraper so you can easily remove every tender squirrel morsel from the Squirrel-O-Matic!

Act now, this offer ends in ten minutes and supplies ARE limited!
Click to expand...
:smuggrin::smuggrin::smuggrin::smuggrin::smuggrin::smuggrin::smuggrin::smuggrin::smuggrin::smuggrin:

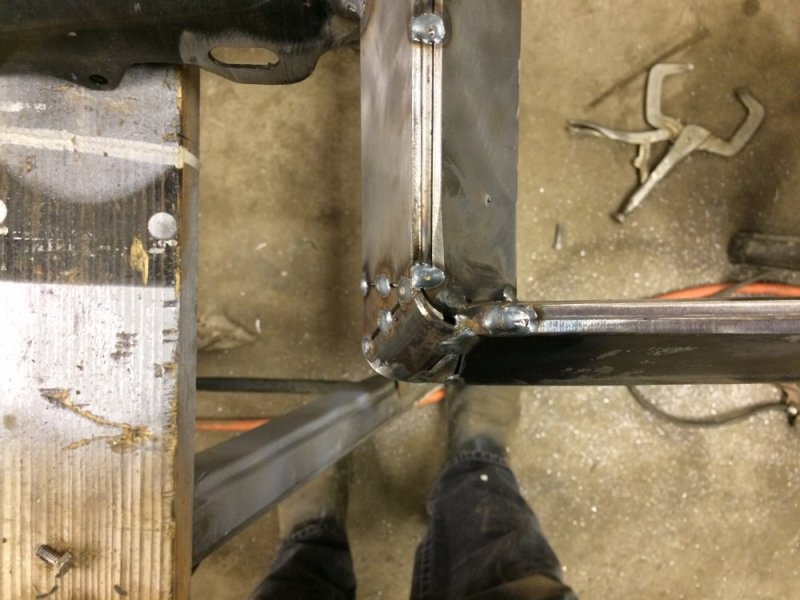

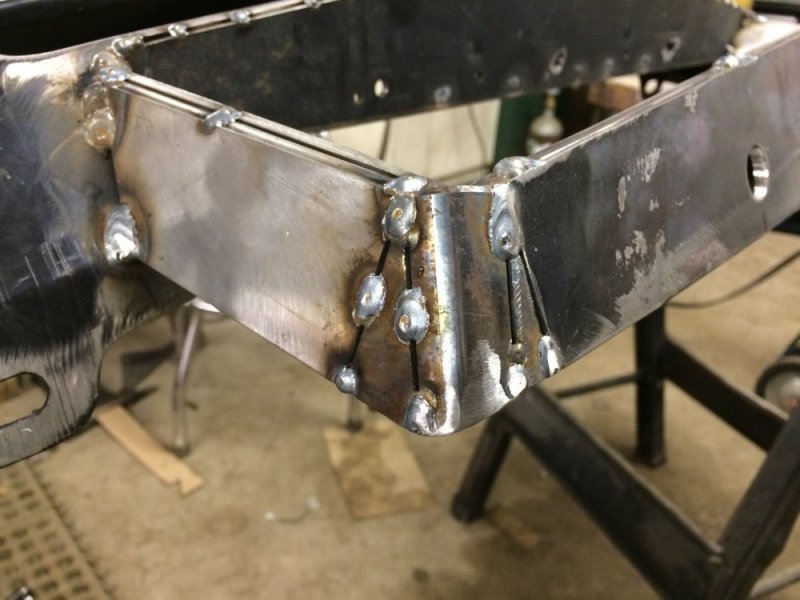

Not as much progress as I had hoped - this part really fought me even with cardboard templates and the fire wrench to coax the metal. But the bottom is now in place the way I wanted. Now I just need to connect the dots in the corners. IMG_7711.JPGIMG_7712.JPG

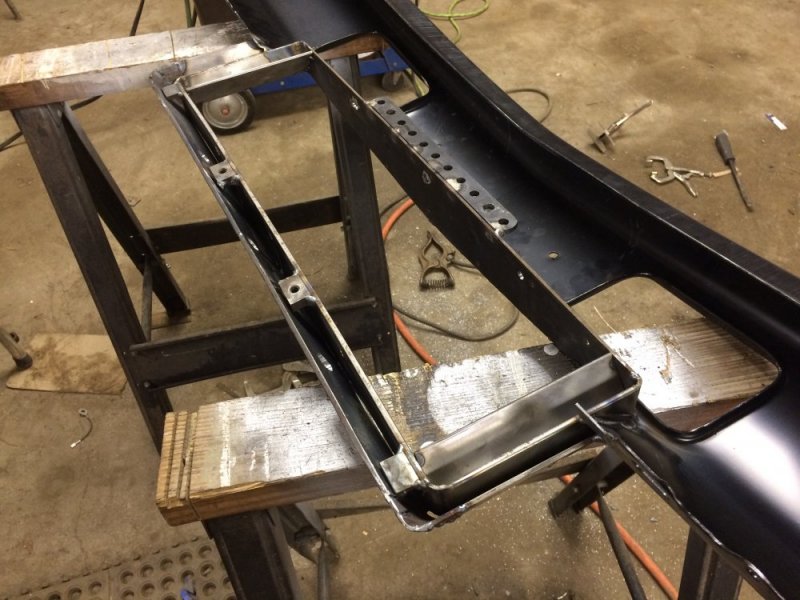

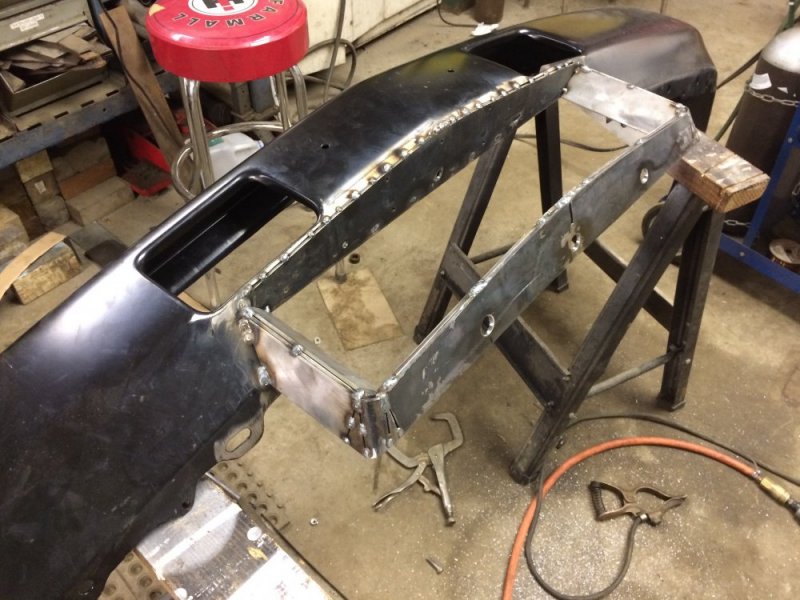

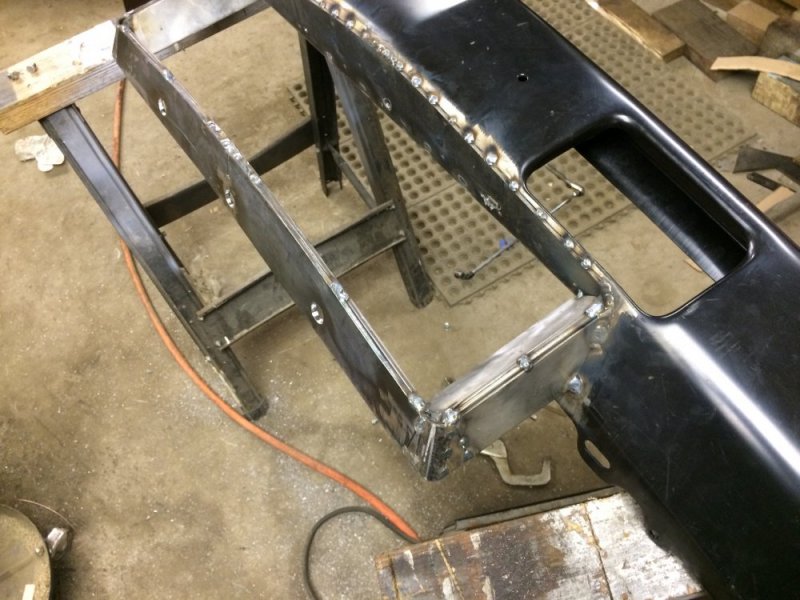

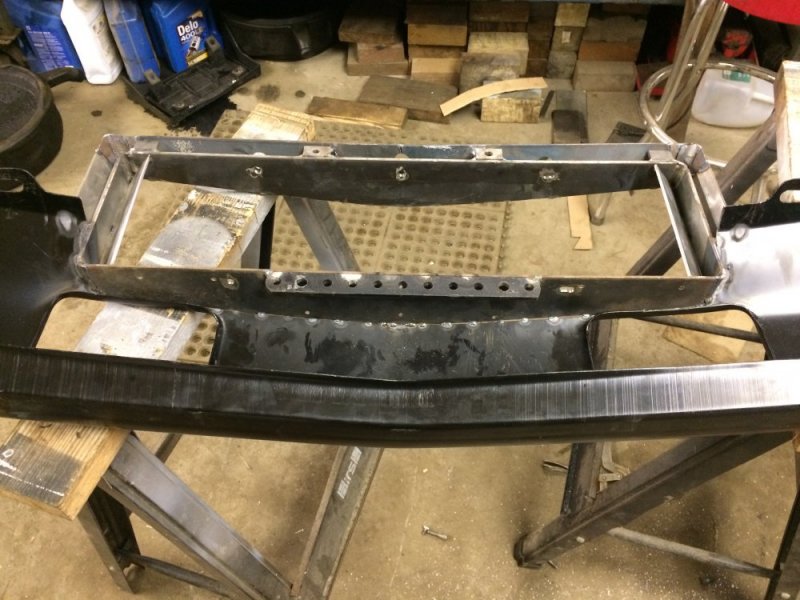

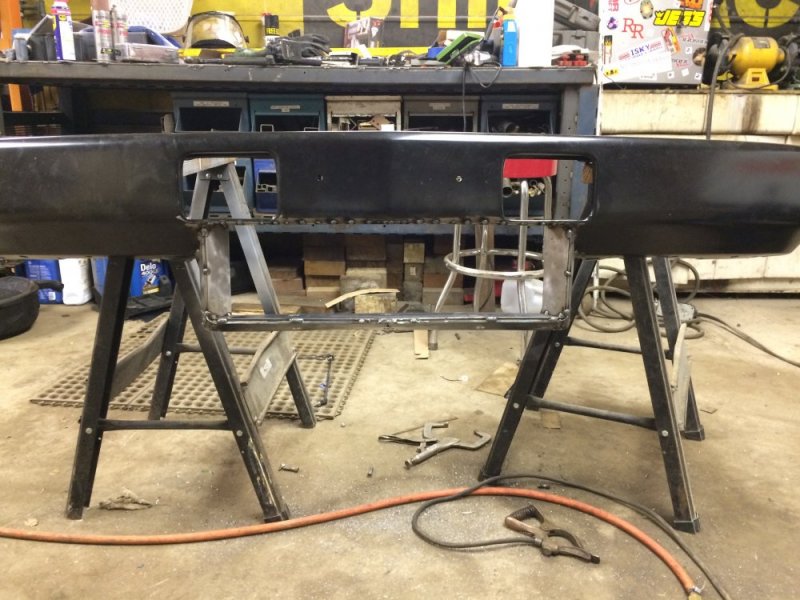

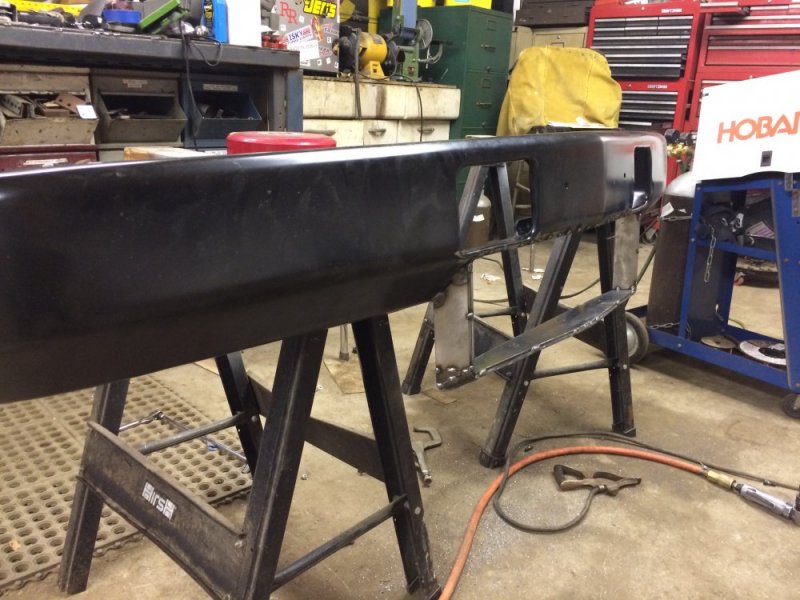

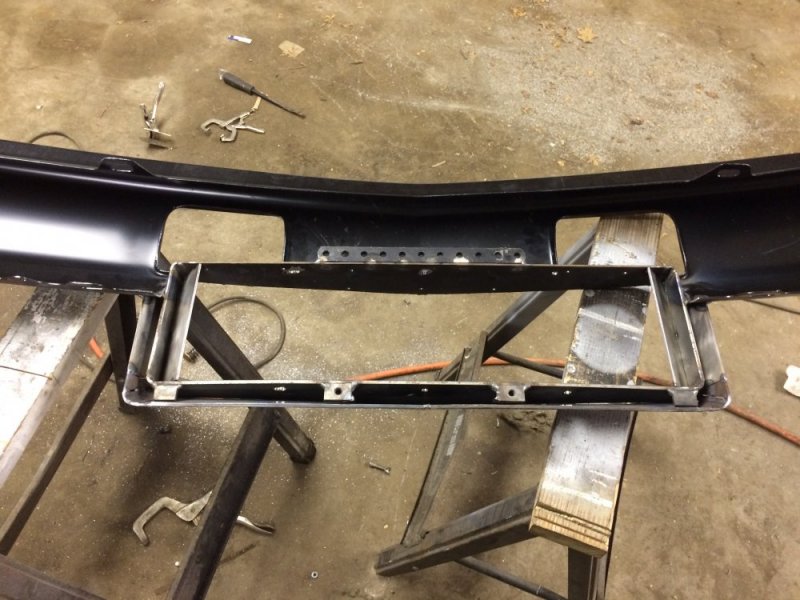

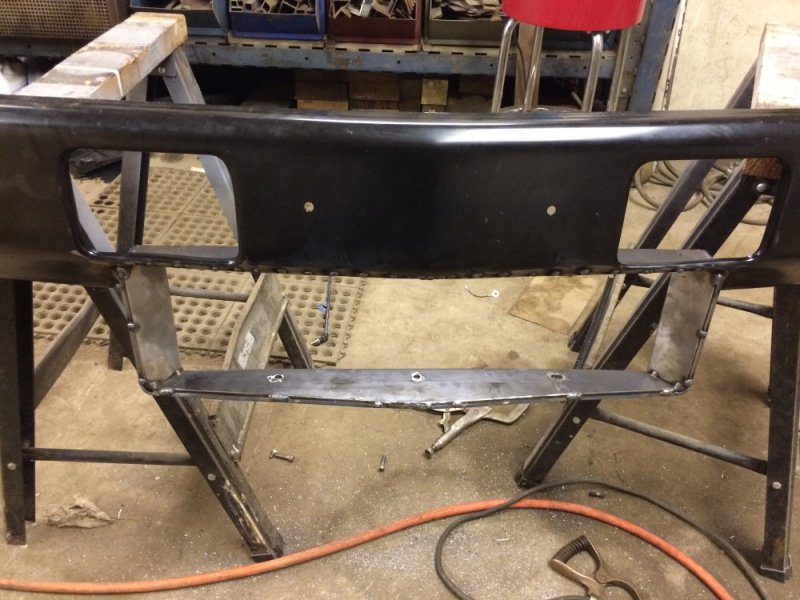

Tonight felt much more rewarding and took less time to accomplish oddly. I made the corners around the mouth and added the access holes for removing the grill. I'm pretty pleased and unfortunately it doesn't show up in pictures as well as it does in real life. Tomorrow night I'll be removing the stock bumper. We'll see if there's enough time to hang this one and see how it fits. I see a lot of welding and grinding in my future.....IMG_7713.JPGIMG_7714.JPGIMG_7715.JPGIMG_7716.JPGIMG_7717.JPGIMG_7718.JPGIMG_7719.JPG
