Tlime for new piston?

[Twisted Steel Performance]

Yes it does look bent..



[denata]

Some kind of tortured motor...



[Will L.]

politician rod: you think it is ok until you examine it, the more you look at it the more crooked you see it is.



[denata]

I am afraid to disassemble further. It is like reading a medecal book - you will find all the diseases in yourself.



[denata]

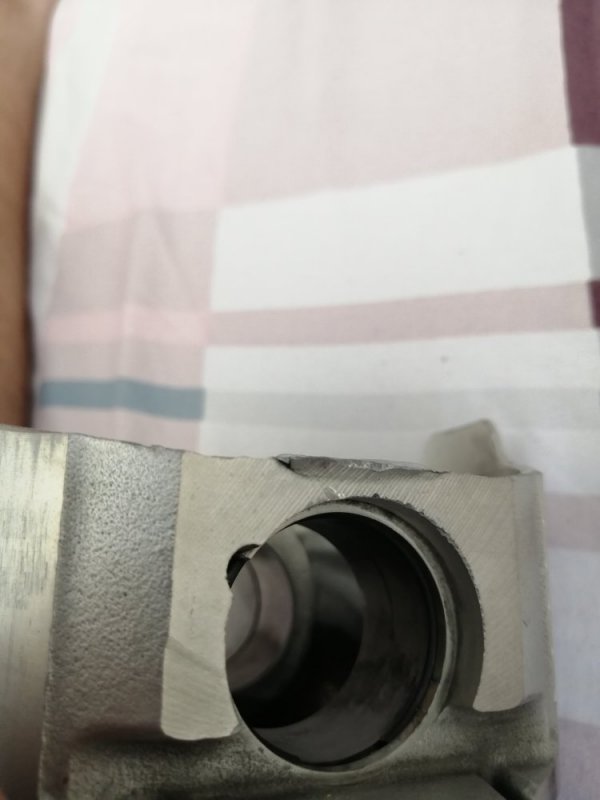

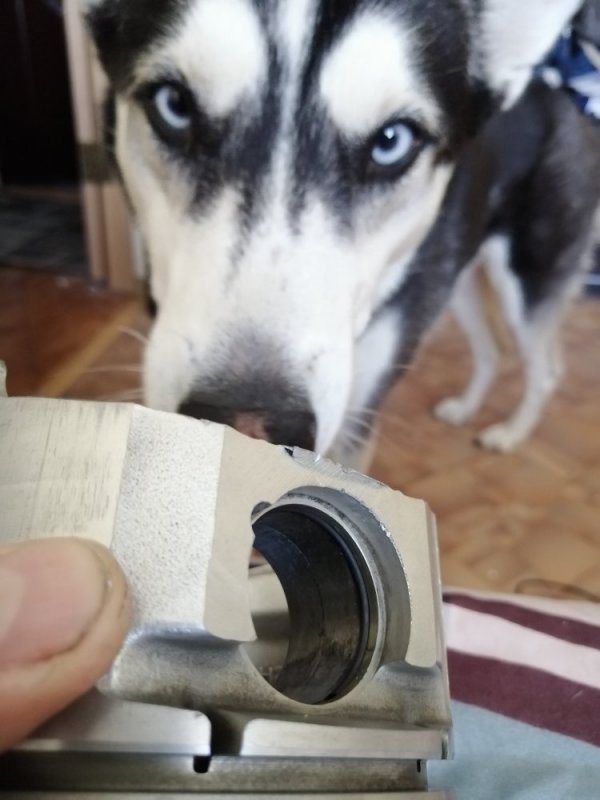

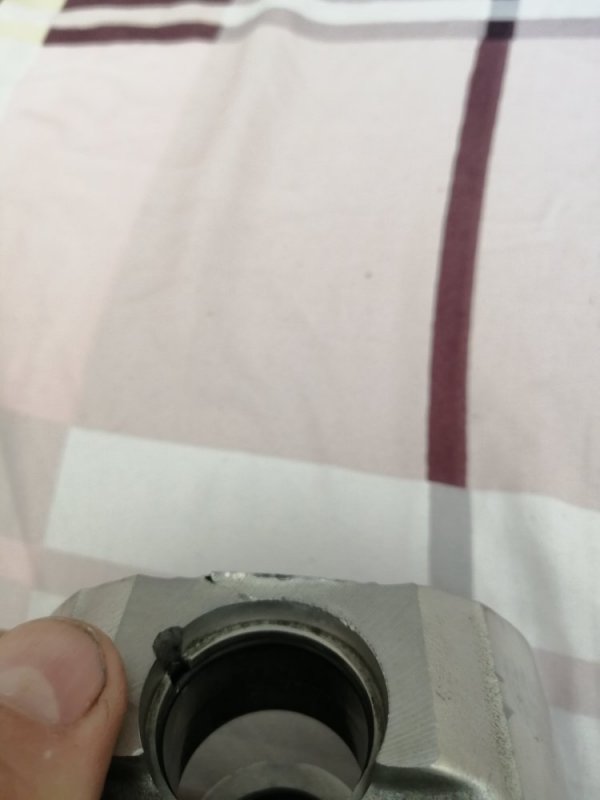

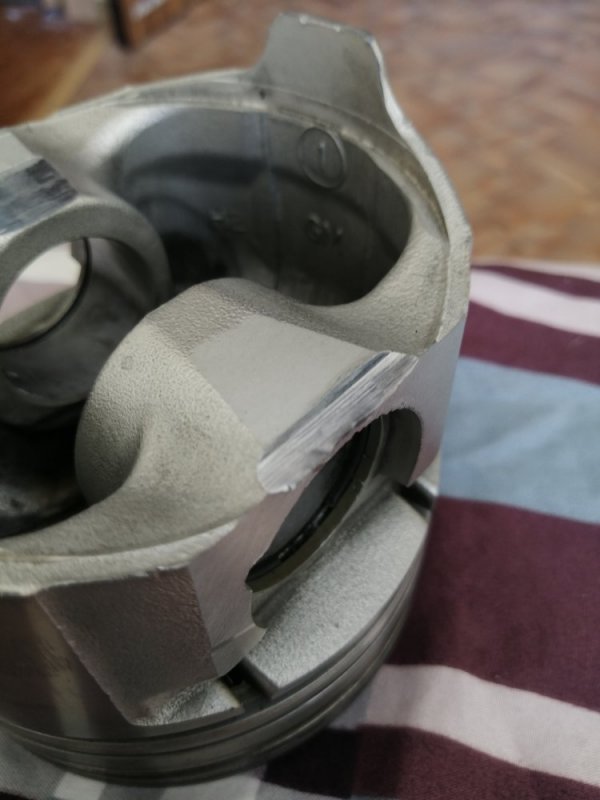

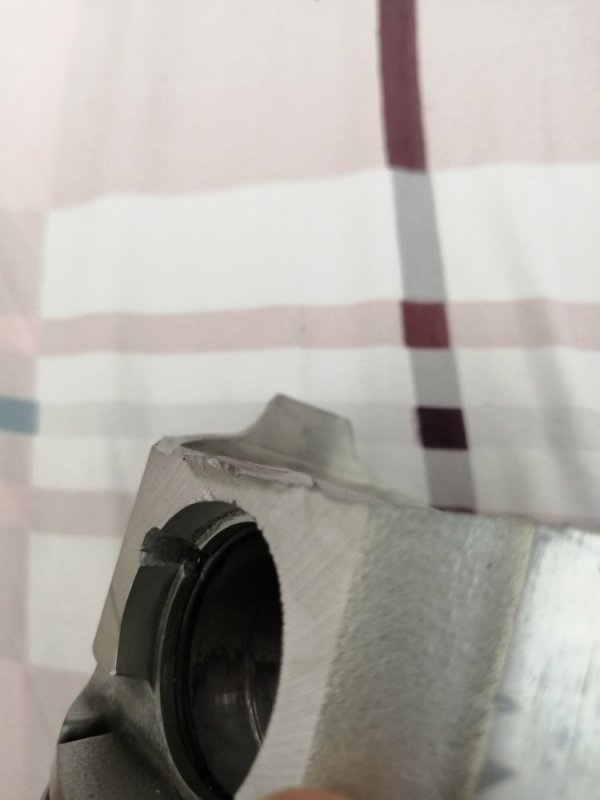

The connecting rod is bent and short. The piston skirt touched the crankshaft.



[denata]

like in a fairy-tale: the farther you go, the scarier it gets.



[Will L.]

How bent is the head components it argued with?



[denata]

In this cylinder(7), everything is fine with the head.



[denata]

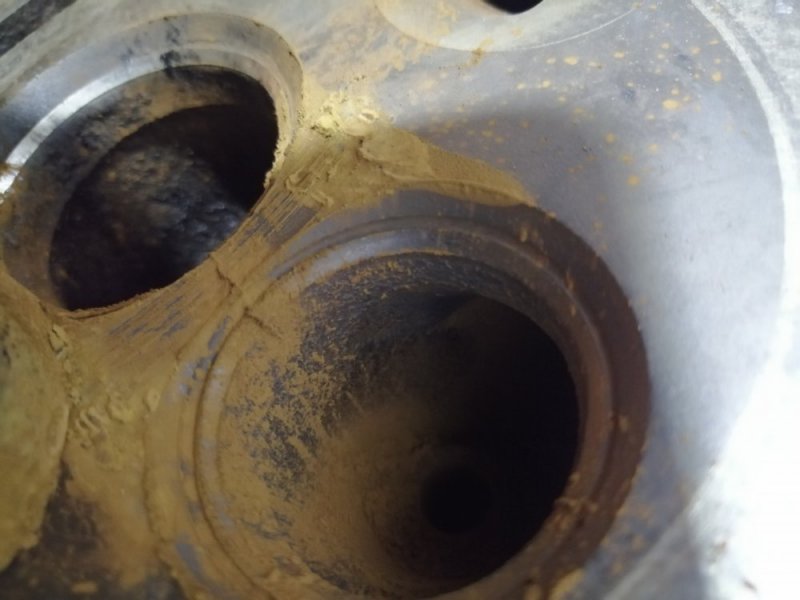

In 8 cylinder the head crancked



[denata]

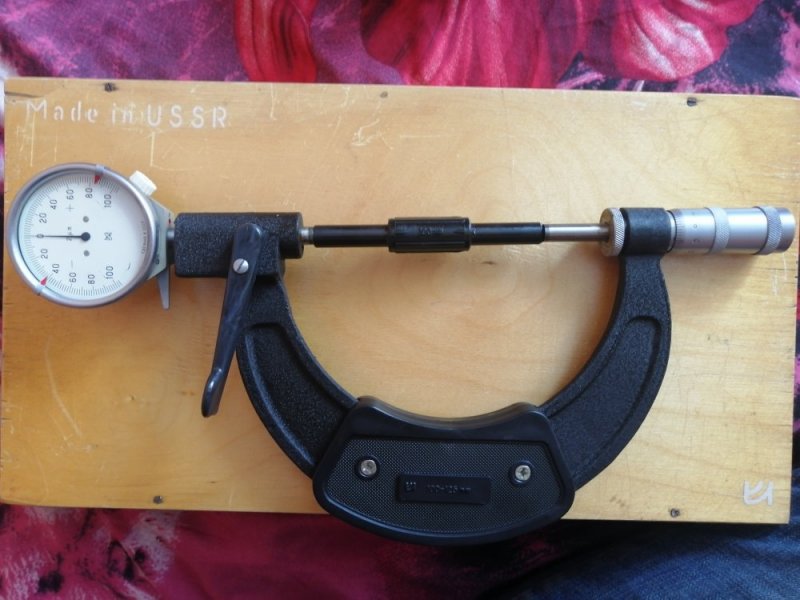

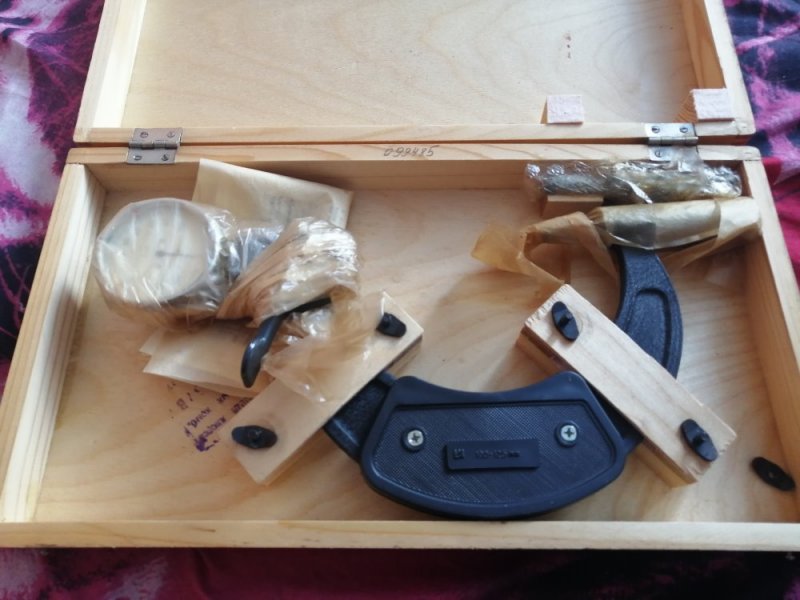

Toy for big boy. Brand new. Found on a local craiglist 15$.



[denata]

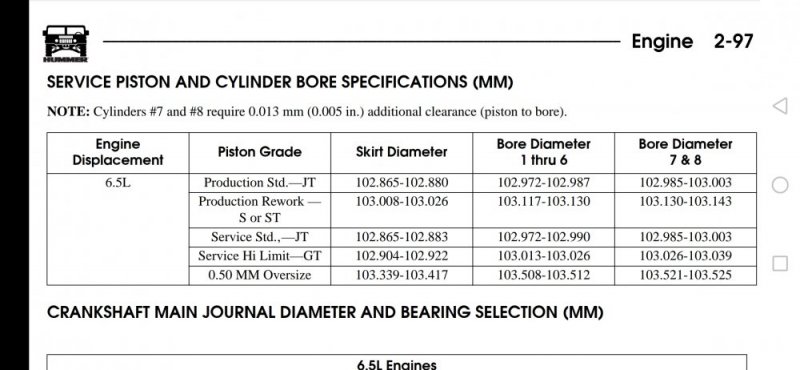

Measured the piston at the level of the piston pin. = 102.86 mm.
The piston is not worn.



[Rodd]

My rebuild just took a turn for the worse. More $$$$. All the cylinder walls looked good I thought when It was magnafluxed. I found a little lip on 1 of the cylinder walls so now they need to be bored out which means I will need larger pistons. I have 8 used balanced pistons (standard size) for sale. I think you are in russia so not sure if you can get them there. Shipping from the US is probably pretty expensive.



[denata]

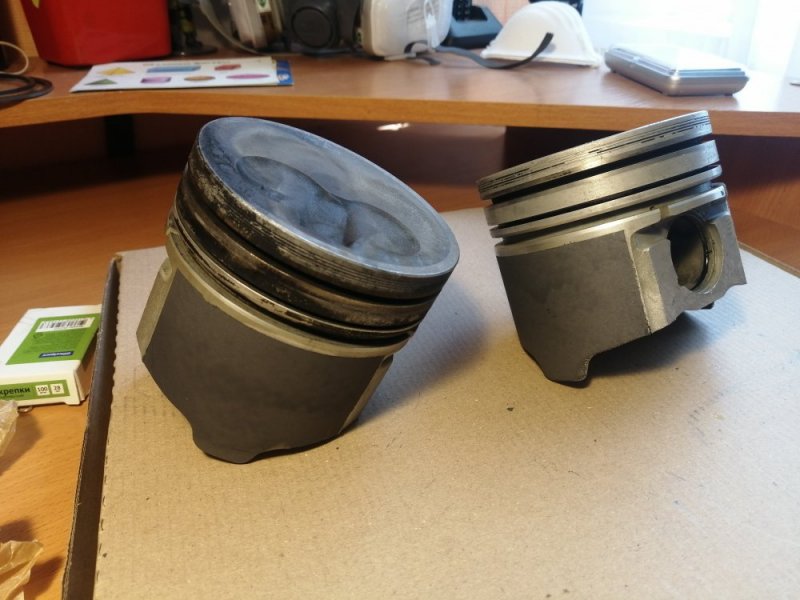

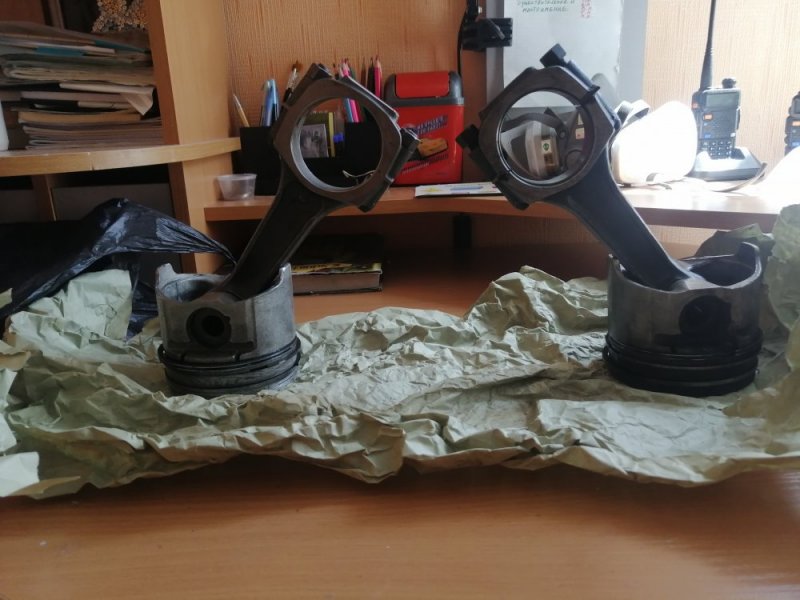

I got a new old piston and connecting rod. In great condition!



[denata]

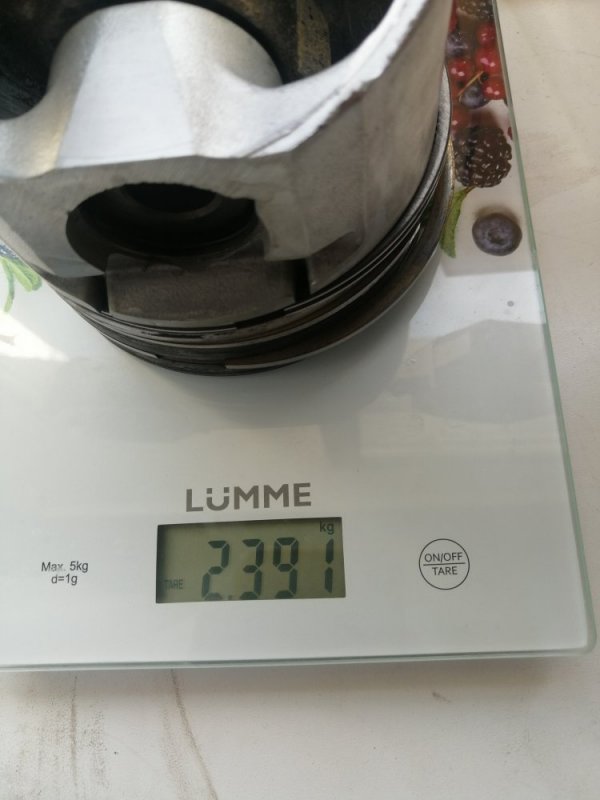

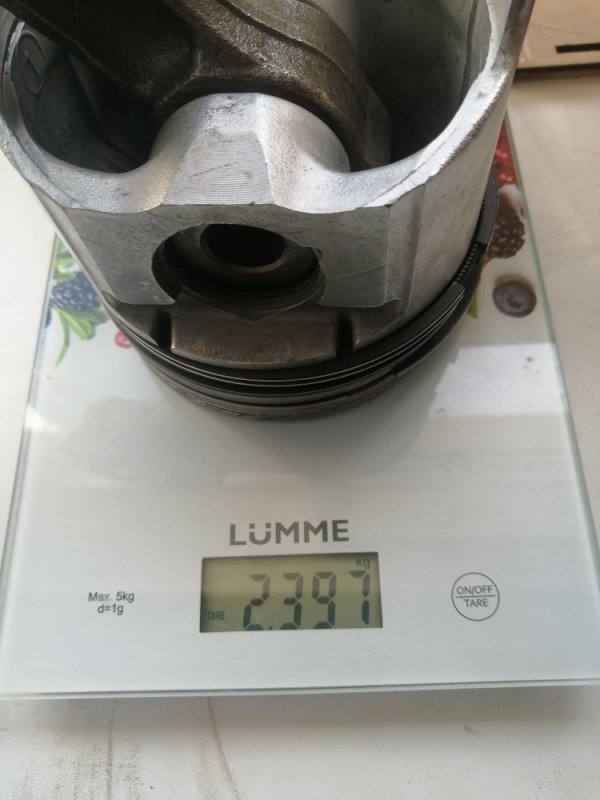

New piston w/r/pin and rod heavier 6 gramm (0.212oz.).



[Will L.]

Time to do some sanding and drilling to get those weights in line.



[denata]

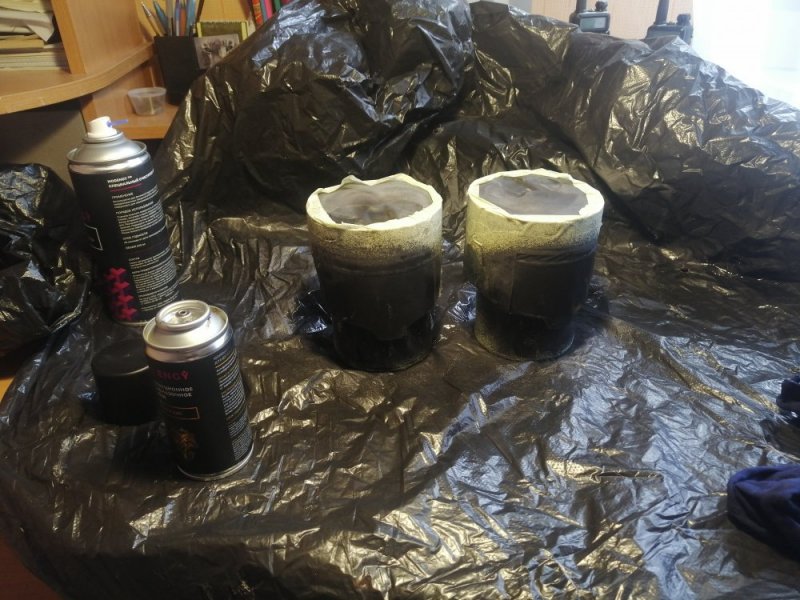

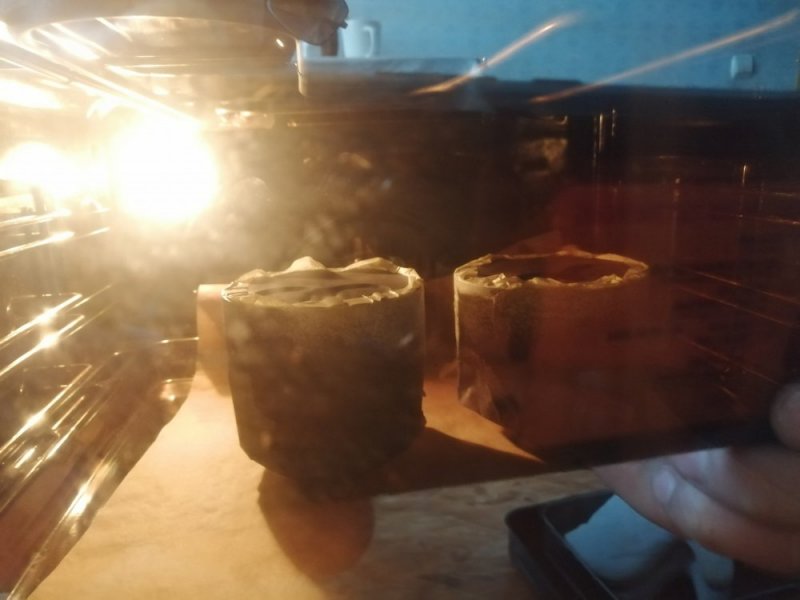

Anti-friction coating.
Roasted in the oven.
First experience.
