Quick Disconnect Help

[Big T]

Need to replace a leaking Quick Disconnect fitting on my Yanmar tractor and having trouble locating the replacement. Already tried replacing the o-ring in the female side, but did not work. Drove around Missoula hitting NAPA, Murdoch’s, tractor supply and two tractor dealers, but nothing. Everyone recommends Northwest Equipment, but not open until Monday.

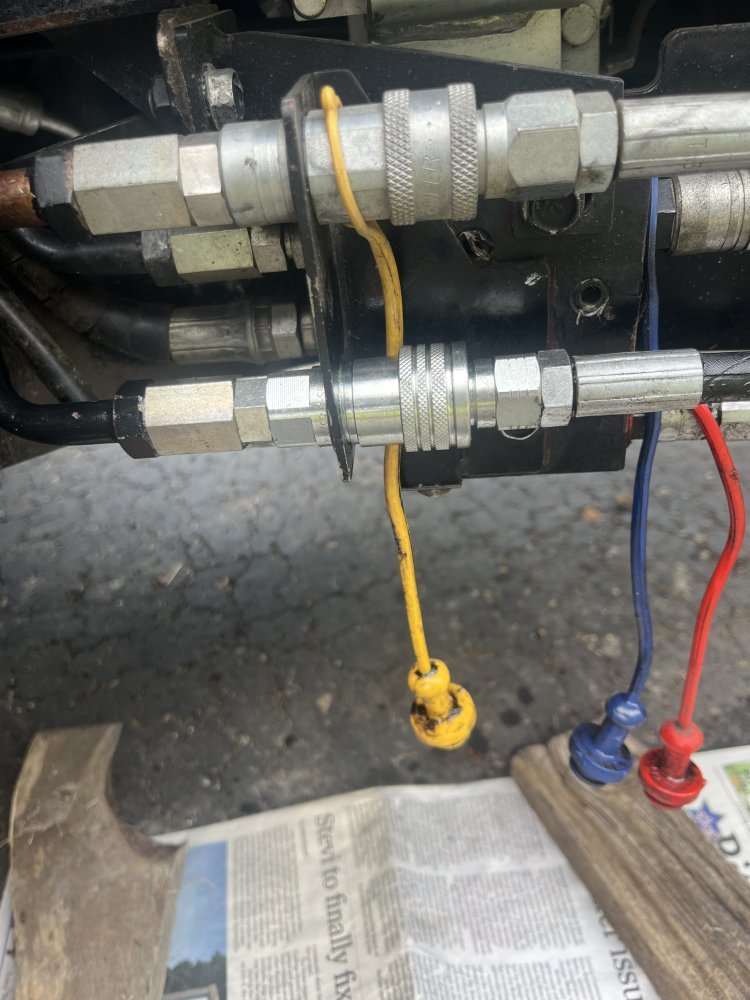

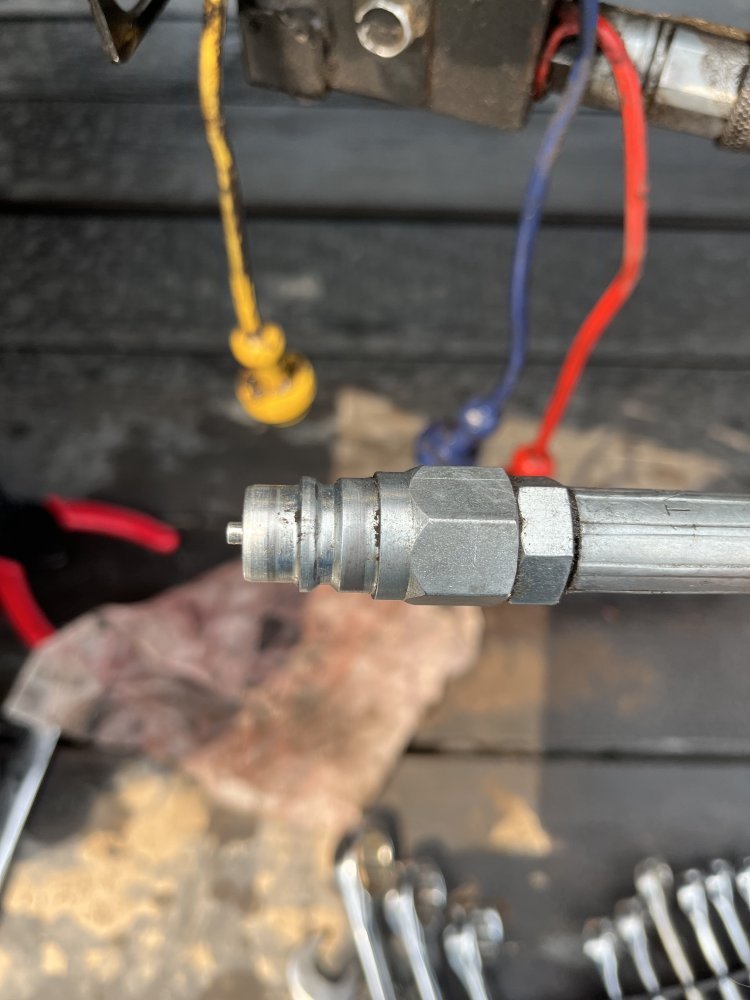

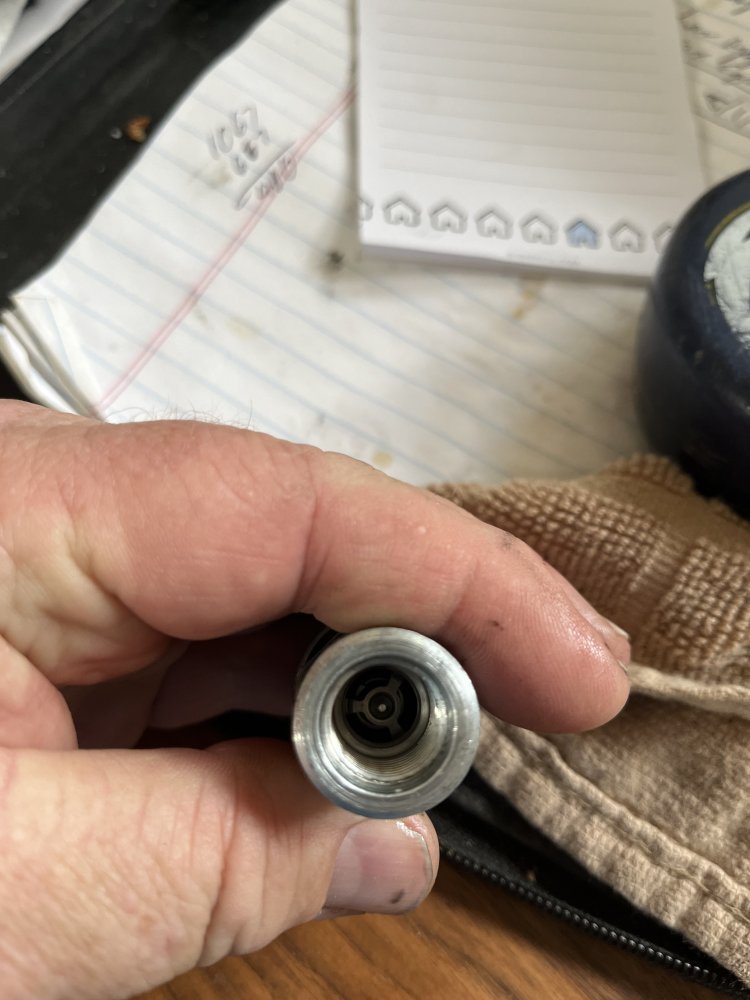

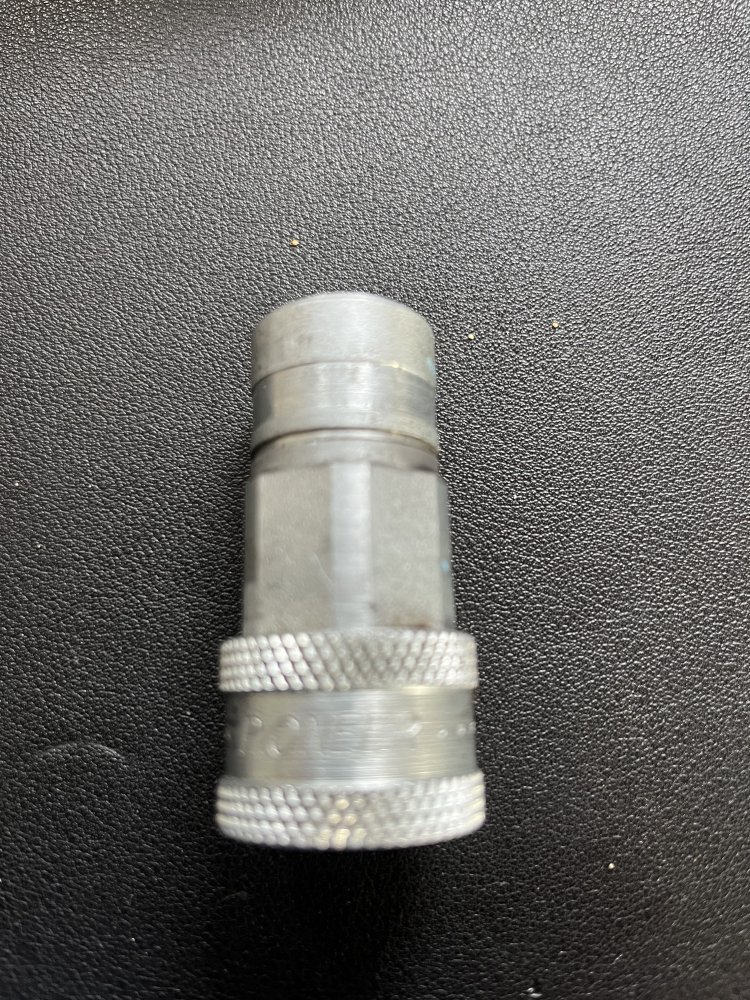

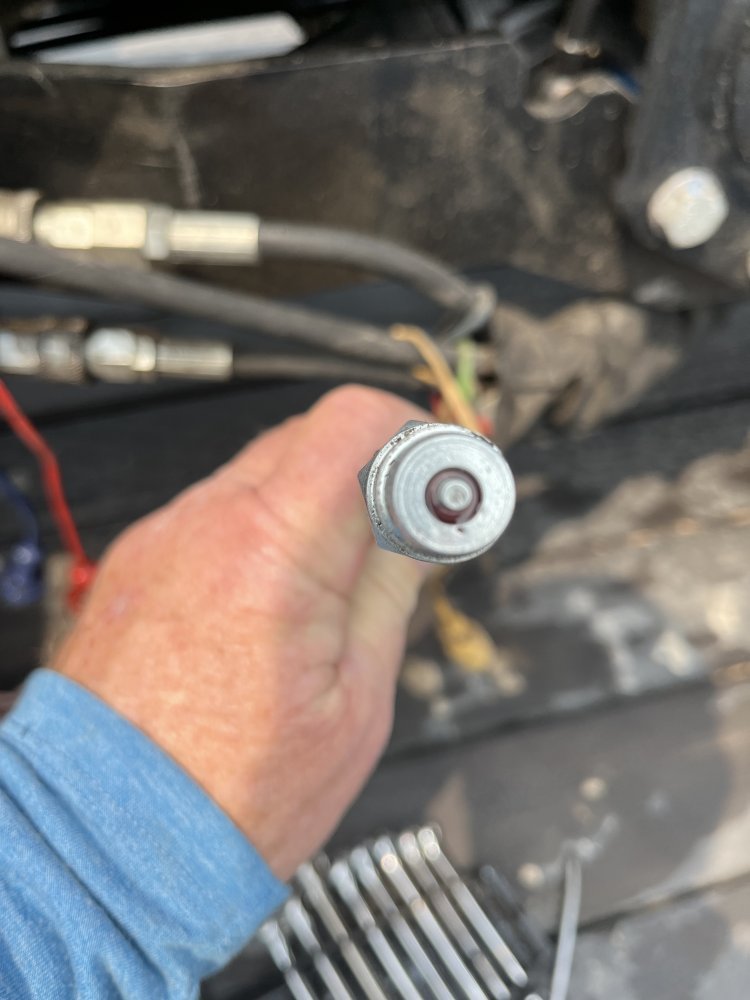

I have a Pioneer (made by Parker) 1/2” body (4050 series) female disconnect with ORB threads using o-ring seal to the pipe. I believe the threads are 1/2”. It is held in place by a snap ring. Here are some pics:



[jrsavoie]

Need to replace a leaking Quick Disconnect fitting on my Yanmar tractor and having trouble locating the replacement. Already tried replacing the o-ring in the female side, but did not work. Drove around Missoula hitting NAPA, Murdoch’s, tractor supply and two tractor dealers, but nothing. Everyone recommends Northwest Equipment, but not open until Monday.

I have a Pioneer (made by Parker) 1/2” body (4050 series) female disconnect with ORB threads using o-ring seal to the pipe. I believe the threads are 1/2”. It is held in place by a snap ring. Here are some pics:


View attachment 89065View attachment 89066View attachment 89067View attachment 89068View attachment 89069

Can you get a matching male and female?
