Coolant flow diagram

[Rockabillyrat]

Does anyone have a coolant flow diagram for a 6.5? I can't seem to locate one.



[ak diesel driver]

I remember seeing one somewhere I'll have to look and see if I can find it.



[ak diesel driver]

Guess my memory is off, I struck out ,sorry.



[Rockabillyrat]

Thanks for taking the time to look! I know I've seen one before...



[Will L.]

If you can search military manuals for cucv, that might have details in it. I am no good at searching online, sorry.



[Husker6.5]

I just checked my Second Edition (1998) C/K Truck Factory Service manual, Vol. 2 Cooling System chapter. Nope, no flow diagram. There is nothing special about this engine's flow, it's not reverse flow or anything like that. Pretty simple and logical to follow it from the lower radiator hose outlet all the way back to the upper hose radiator inlet.



[FellowTraveler]

The small diameter hose going to the radiator just below the radiator cap from the engine is known as a steam line.

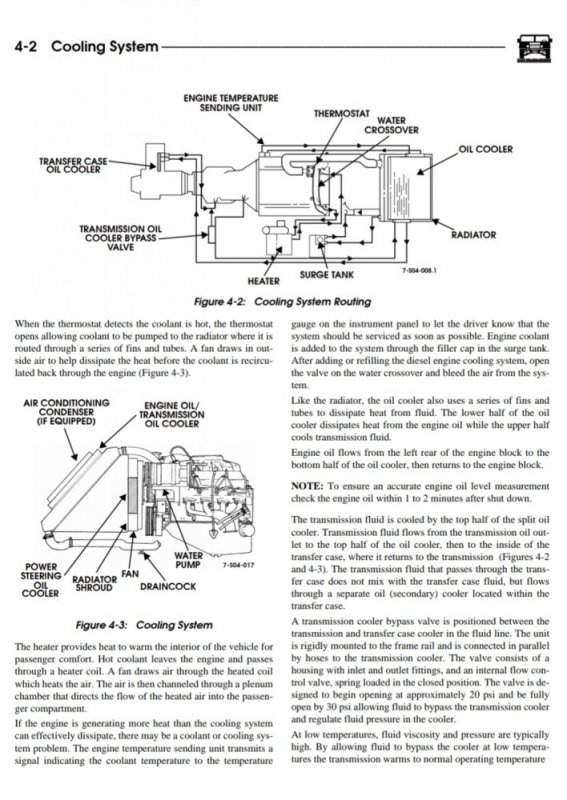

[denata]



[Husker6.5]

@denata Good job, a Hummer manual! Not owning a Hummer myself, just the Burb and P/U, I've never had need of any Hummer-specific 6.5/6.2 manuals.



[denata]

Welcome.



[Rockabillyrat]

Exactly what I was looking for. Thank you!



[Will L.]

I don’t recall which is hummer same as pickups, hummer flow changed in 95/96 and again in 99 iirc.
